SECO Milling Mini Disc 335.14 Shank 16 Size 335.14-1609.0-018-080 1 pc

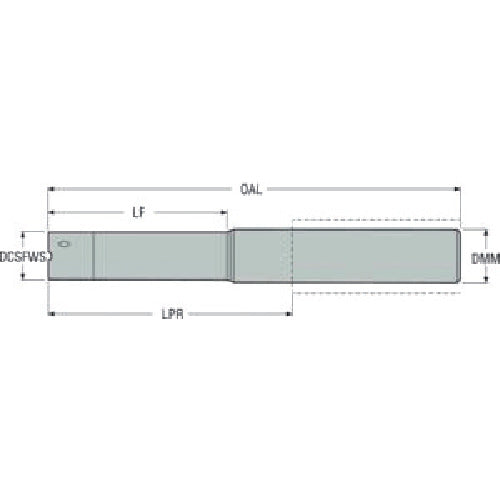

Catalog number: 335.14-1609.0-018-080 Features: ●Shank for head-replaceable carbide side cutters with a diameter of 9.7 mm or more. For small diameter side cutters 335.14, which excels in arc completion and straight groove machining. ●Model number ending in E indicates a carbide shank. ●Small diameter side cutter system dedicated to shallow groove machining, circlip groove machining, upper and lower chamfering, full R shape, and thread cutting Specifications: ●DCSFWS(mm): 9.0 ●DMM(mm): 16.0 ●LF(mm): 12.2 ●LPR(mm): 26.2 ●OAL(mm): 74.2 ●Insert: R335.14...09Z.. ●Coolant through: Yes ●RPMX: 30000 ●Shank type: Cylindrical ●DCSFWS: 9.0mm●DMM: 16.0mm●LF: 12.2mm●OAL: 74.2mm●335．14 Shank - Straight type One meter specification
