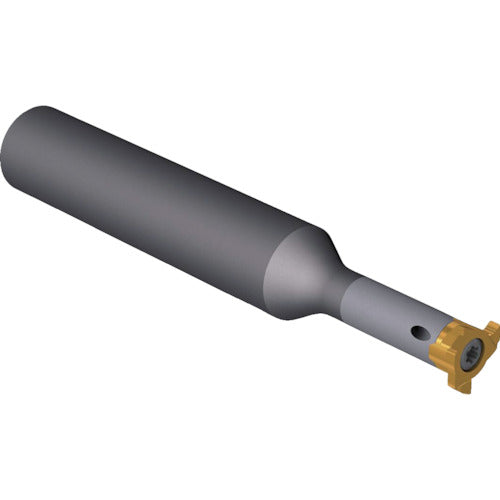

SECO Milling Mini Disc 335.14 Shank 16 Size 335.14-1612.0-042-100-E 1 pc

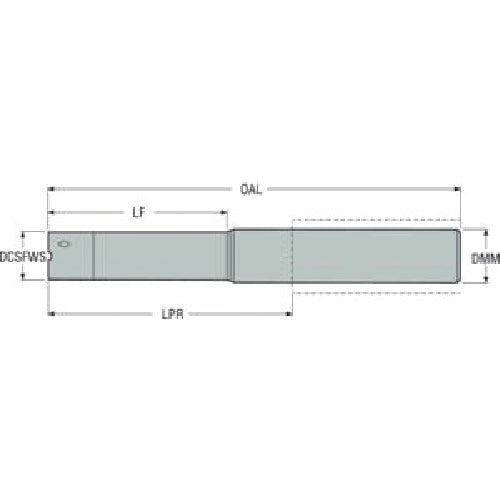

Catalog number: 335.14-1612.0-042-100-E Features: ●Shank for head-replaceable carbide side cutters with a diameter of 9.7 mm or more. For small diameter side cutters 335.14, which excels in arc completion and straight groove machining. ●Model number ending in E indicates a carbide shank. ●Small diameter side cutter system dedicated to shallow groove machining, circlip groove machining, upper and lower chamfering, full R shape, and thread cutting Specifications: ●DCSFWS(mm): 12.0 ●DMM(mm): 16.0 ●LF(mm): 36.3 ●LPR(mm): 46.3 ●OAL(mm): 94.3 ●Insert: R335.14...12Z.. ●Coolant through: Yes ●RPMX: 30000 ●Shank type: Cylindrical ●DCSFWS : 12.0mm●DMM : 16.0mm●LF : 36.3mm●OAL : 94.3mm●335．14 Shank - Straight type One meter specification
