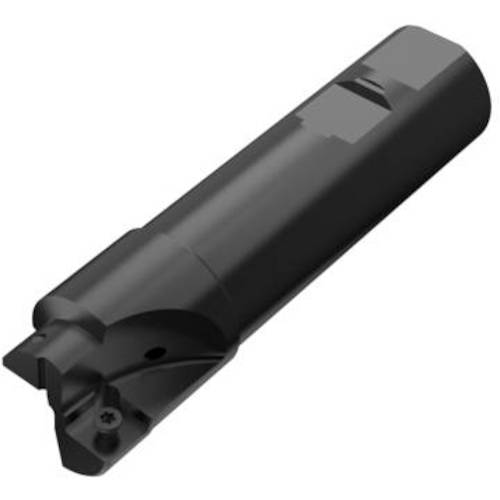

SECO Milling Countersink Cutter R417.19 R417.19-3238.3-12A 1 pc

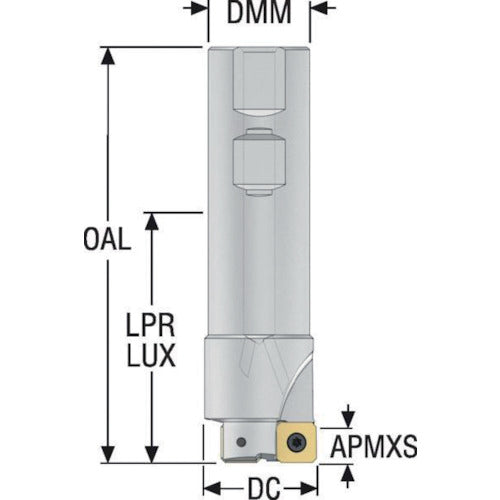

Catalogue number: R417.19-3238.3-12A Features: ●Cutter for machining blind holes and countersinks. ●Strong SPMX insert with 4 corners is available in a wide range of grades for most workpiece materials. ●Spot Face Mill is a cutter for machining blind holes and countersinks. ●Key benefits include smooth cutting, reduced spindle load with a balanced tool, high security with center lock clamping, all designed in an economical solution. Specifications: ●APMXE(mm): 19.0 ●DC(mm): 38.0 ●APMXS(mm): 11.0 ●DMM(mm): 32.0 ●LS(mm): 90.0 ●LUX(mm): 70.0 ●OAL(mm): 130.0 ●RPMX: 12300 ●SPMX*: 12T3AP (1), 12T308 (1) ●ZEFP: 1 ●ZNP: 2 ●Mounting shape: Weldon ●SECO countersinking tool R417.19 ●Compatible inserts: SPMX 12T3AP (1) 12T308 (1) ●R417.19-SPMX one meter specification
