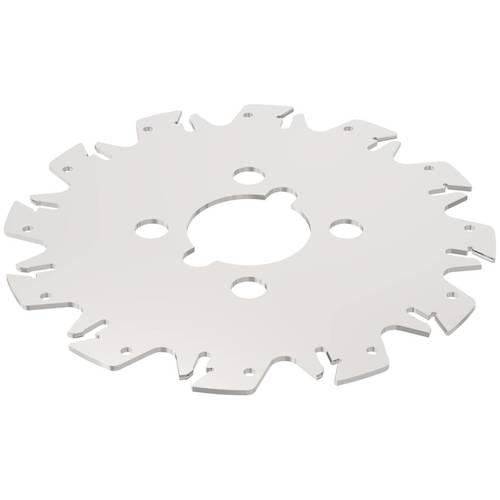

SECO Milling Cutter Narrow Width Side Cutter 335.10-02 335.10-160-02.40-12 1 pc

Catalog number: 335.10-160-02.40-12 Features: ● Narrow width side cutter with extremely low cutting resistance. ● Complete with tip shapes and materials to suit all applications. ● Easy-to-use and reliable side cutter system for narrow groove and cutting processing Specifications: ● CDX (mm): 39.5 ● CW (mm): 2.25 ● DC (mm): 160.0 ● DCB (mm): 40.0 ● THUB (mm): 1.9 ● Insert 150.10: -2.25N/2.5N ● CWN (mm): 2.25 ● CWX (mm): 2.5 ● RPMX: 2400 ● ZEFP: 12 ● Mounting part shape: Arbor hole ● SECO Side cutter for cutting R335.10 ● Cutting width setting standard; CW 2.25 - 4.1mm ● Cutter 335．10 − Insert 150．10 One meter specification _x000D_●Width 2．25/2．5/3．1 mm − Groove processing − HSS body
