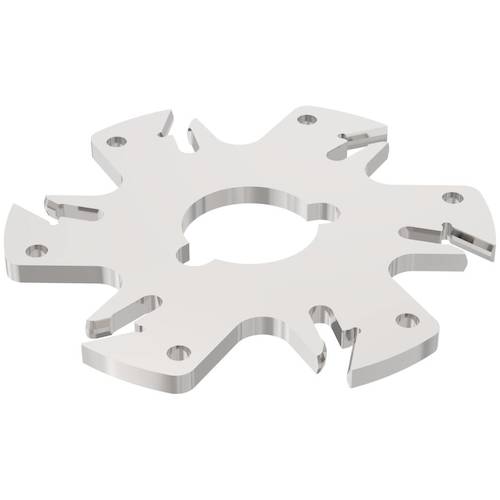

SECO Milling Cutter Narrow Width Side Cutter 335.10-04 335.10-080-04.22-6 1 pc

Catalogue number: 335.10-080-04.22-6 Features: ● Narrow width side cutter with extremely low cutting resistance. ● A complete range of insert shapes and materials for all applications. ● Easy-to-use and reliable side cutter system for narrow groove and cutting processing. Specifications: ● CDX (mm): 22.5 ● CW (mm): 4.1 ● DC (mm): 80.0 ● DCB (mm): 22.0 ● THUB (mm): 3.4 ● Insert 150.10: -4N ● CWN (mm): 4.1 ● CWX (mm): 4.1 ● RPMX: 3500 ● ZEFP: 6 ● ZNP: 6 ● Mounting shape: Arbor hole ● SECO Side cutter for cutting R335.10 ● Cutting width setting standard; CW 2.25 - 4.1mm ● Width 4.1 mm - Groove processing - HSS Body _x000D_●Cutter 335.10 − Insert 150.10 One meter specification
