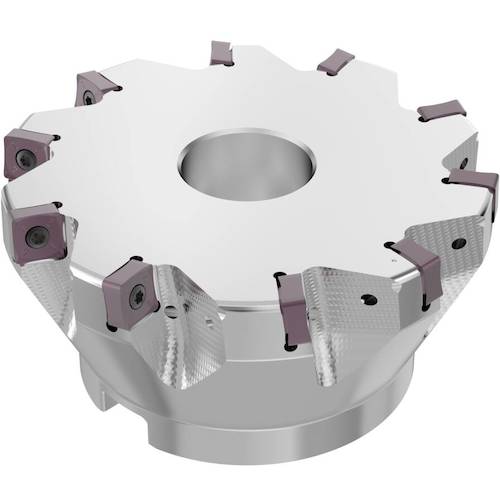

Seco milling cutter 88° cutter R220.88-12 R220.88-0125-12-10SAP 1 piece

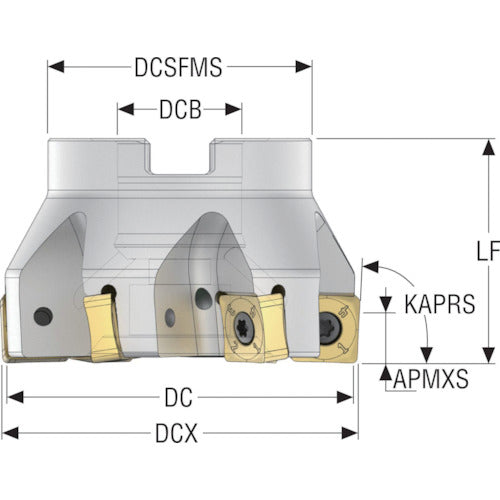

Catalogue number: R220.88-0125-12-10SAP Features: ●Face mill with economical double-sided 8-corner inserts providing high depth of cut. ●R220.88 cutters with SNMU12/16 inserts provide high depth of cut with economical 8-corner square inserts. ●These cutters offer excellent performance in machining steel and cast iron and are available in two insert sizes, 12 and 16. ●This tool is ideal for roughing and semi-finishing operations. Specifications: ●DC: 160.0mm ●DCB: 40.0mm ●DCSFMS: 90.0mm ●LF: 63.0mm ●APMXS: 13.0mm ●ZEFP (number of effective cutting edges): 12 ●KAPR (cutting edge angle): 88.0° ●Shank type: Arbor ●DCX: 161.58mm ●Insert: SN.U1204 ●APMXS (mm): 9.0 ●DCB (mm): 40.0 ●DC (mm): 125.0 ●DCSFMS (mm): 90.0 ●DCX (mm): 126.15 ●KAPRS°: 88.0 ●LF (mm): 63.0 ●RPMX: 7900 ●Mounting shape: Arbor ●Compatible insert: SN.U1204 ●R220.88-12 One meter specification
