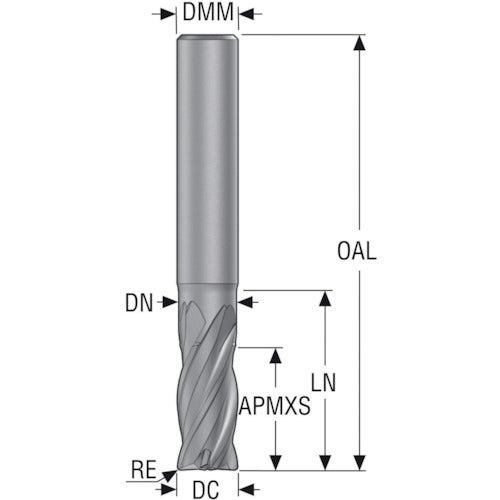

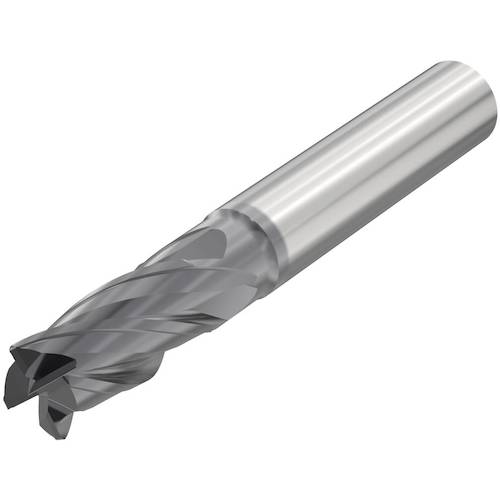

Catalog number: JSE514100E2R100.0Z4 SIRA Features: ●A 4-blade end mill with excellent cost performance. ●The JSE510 series is the lowest priced solid end mill series and is suitable for most milling applications. Specifications: ●Shank type: Cylindrical ●PCEDC (number of teeth): 4 ●DC: 10.0mm ●DMM: 10.0mm ●OAL: 72.0mm ●APMXS: 20.0mm ●RE: 1.0mm ●Cmax: 17.9mm Cmin: 13.0mm ●LN: 29.0mm ●Coating: SIRON-A
