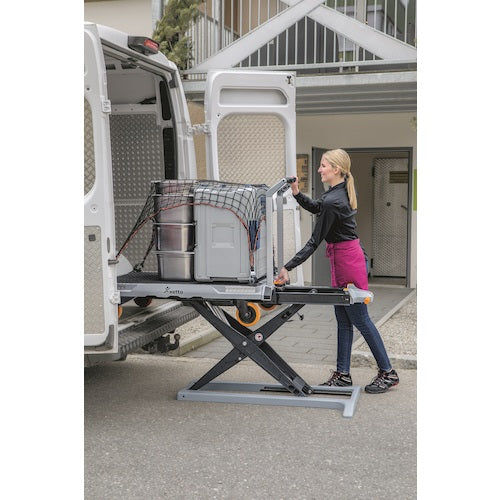

Catalogue number: 1003-0811 Features: ●An electric lifting cart that allows one person to move and load/unload cargo weighing up to 250 kg onto a vehicle. ●Operation can be easily performed by one person using the handle at hand. ●Products, materials, molds, etc. can be loaded onto and unloaded from the vehicle's loading platform. ●Heavy objects can be moved and loaded safely. ●Can be easily placed onto the loading platform using a ramp (sold separately). ●Battery depth of discharge (DOD) is 70% after 600 cycles of use. Applications: ●For transporting heavy objects. Specifications: ●Uniform load (kg): 250 ●Table dimensions (mm) width: 826 ●Table dimensions (mm) length: 1186 ●Table height (mm): 268-1068 ●Motor output (kW): 0.37 ●Rise time (sec) 50Hz: 20 ●Rise time (sec) 60Hz: 20 ●Wheel diameter D (mm): 162 ●Lifting method: Electric hydraulic ●Battery type ●Charger time: 2 hours ●Number of lifts when fully charged: 15-20 times Set contents/accessories: ●Battery pack (1003-0939): 1 piece, Charger (1003-0940): 1 piece Caution: ●When loading onto the loading platform, use a belt or rope to make sure that the dolly and the load are securely fastened. ●When using to load onto the loading platform, make sure that the height to the loading platform is less than 800 mm.
