Its structure involves sucking in and pushing out the solution with a piston, so it can also handle highly viscous solutions.
The high-precision SUS430 piston and barrel ensure smooth piston action and high airtightness.
The piston does not use an O-ring, reducing the maintenance work of replacing the O-ring.
It can be easily disassembled into six parts without tools, making it easy to replace and clean the parts.
It can be autoclaved without disassembly.

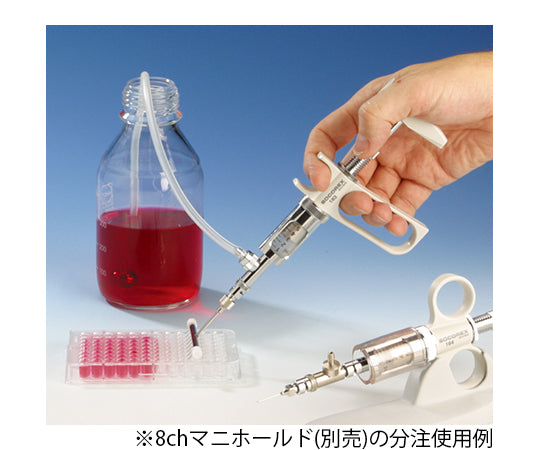

By using the optional 4ch/8ch manifold, continuous dispensing to multi-well plates is also possible. Handle: Pistol
Capacity: 5mL
Minimum scale: 0.5mL
Dimensions (W x D x L/cm): 11 x 3 x 17.5-20
- Weight(g):206
Usage range: 0.5 to 5 mL
Repeatability (maximum capacity): ±<0.2%
Material: Barrel/heat-resistant glass, packing/PTFE, valve/nickel-chrome brass, piston/stainless steel (SUS430), washer (black)/Viton(R), sinker/chrome-plated brass, tube/silicon
Autoclavable

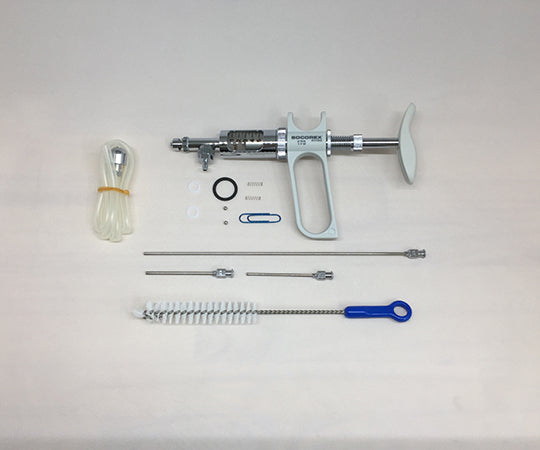

Contents: Continuous dispenser, 1 each of S, L, and LL needles, silicone tube with metal sinker, spare parts set, barrel cleaning brush
*A connecting valve (187.613) is required to connect a PP reservoir.
