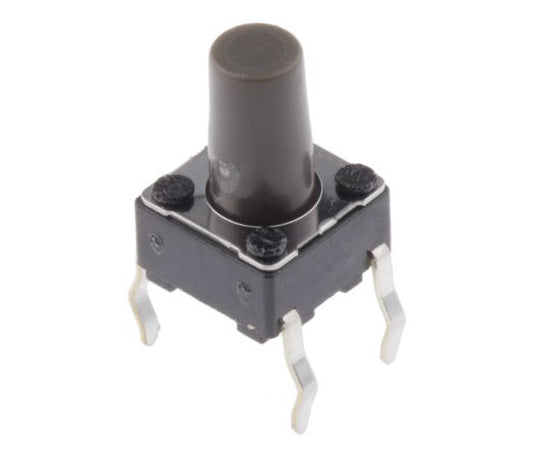

Tact switch, single pole single throw (SPST), through hole, 1 box (20 pieces) SKHHAPA010 1 box (20 pieces)

Alps Electric THT Tact Switch - SKHH Series Alps Electric's SKHH series tactile or tact switches are SPST snap action switches for low current use (rated current 50mA, 12V dc). These tact switches have a sharp and positive operating feel, low contact resistance and high contact reliability, and are available with a variety of operating forces. The SKHH series tact switch has a travel of 0.25 mm, body size of 6 x 6 mm, snap-in THT type terminals, and can be operated in either vertical or horizontal direction. Sharp and reliable feeling Push plate available in a wide variety of colors Vertical and horizontal operation directions Wide range of operating forces Long life Low contact resistance: 100MΩ Insulation resistance: less than 100MΩ @ 100 V dc Ideal for automotive applications Quantity: 1 box (20 pieces) Contact Configuration: Single Pole Single Throw (SPST) Terminal Type: Through Hole Switch action: momentary Actuator length: 9.5mm Actuator color: Gray Actuator Type: Stem Dimensions: 6 x 6 x 9.5mm Contact current rating: 50mA @ 12V dc Operating force: 1.57 N Operating temperature range: -30 → +85°C RoHS Compliance Status: Compliant Code number: 758-1966
