(株)TJMデザイン

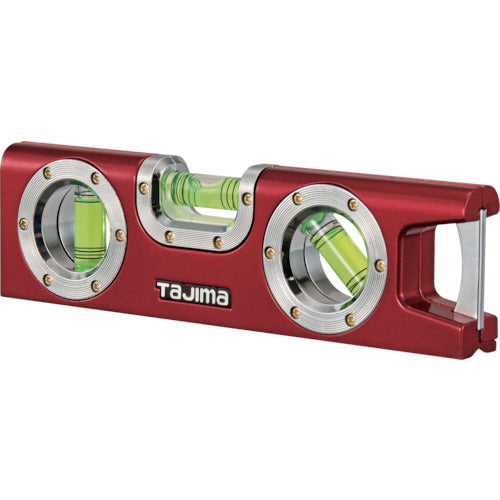

Tajima Mobile Level 160 Red ML-160 1 piece
Tajima Mobile Level 160 Red ML-160 1 piece
Regular price
¥5,776
Regular price
Sale price
¥5,776
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

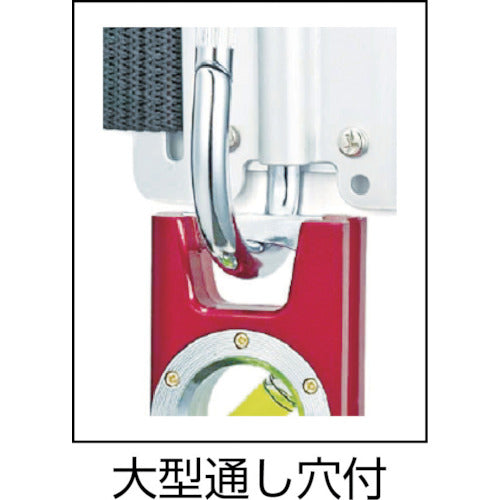

Catalog number: ML-160 Features: ●Portable aluminum level with magnet. ●V-groove measuring surface that can be firmly fixed to a pipe. ●Large through-hole. ●Uses a luminous plate that can be read even in the dark. ●Equipped with a powerful neodymium magnet with a magnetic flux density of approximately 330 millitesla (mT). Applications: ●For horizontal, vertical, and 45° measurements. Specifications: Color: Red Length (mm): 160 Height (mm): 45 Thickness (mm): 18 Magnet: 1 Body color: Red Vial color: Green Precision: 1.50mm/m=0.08590° Vial type: Horizontal: E-1 (6 indicator lines/3 left and right), Vertical/45°: E-2 (4 indicator lines/2 left and right) Luminous sheet: Yes Luminous plate included Vial: Horizontal/Vertical Number of indicator lines: 6 horizontal/4 vertical rings Magnetic flux density: Approximately 330 millitesla (mT) *10 Gauss (G) = 1 millitesla (mT) Material/Finish: Body: Aluminum die-cast Vial: Acrylic Caution: If the liquid comes into contact with your body due to a leak caused by a broken vial, immediately rinse with clean water. If the liquid gets into your eyes, seek medical attention from an ophthalmologist.
