Tajima Laser Level ZERO BLUE Lithium-KYR Receiver and Tripod Set ZEROBL-KYRSET 1 S

Tajima Laser Level ZERO BLUE Lithium-KYR Receiver and Tripod Set ZEROBL-KYRSET 1 S

JAN:4975364141828
Regular price ¥145,860
Regular price Sale price ¥145,860
Sale Sold out
Shipping calculated at checkout.

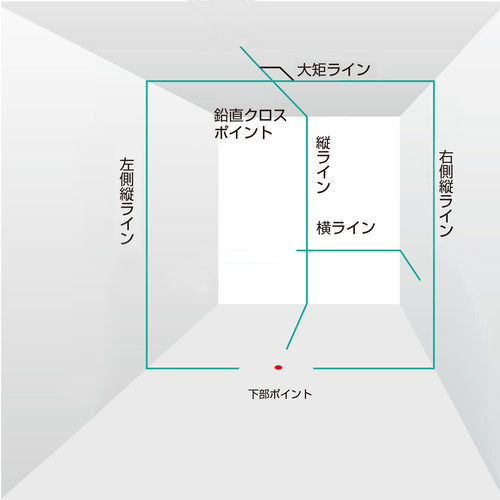

Catalogue number: ZEROBL-KYRSET Features: ●A non-glare blue-green laser with a luminosity of 300. ●Equipped with a 360° rotation fine adjustment function that allows for precise alignment with the ground. ●Gimbal type laser. ●Uses dedicated lithium-ion rechargeable battery 7424. ●Continuous use time when using three vertical lines is approximately 17 hours in save mode and approximately 10 hours in just mode. (Varies depending on usage conditions and method) ●The laser light flashes for 30 seconds, after which the laser turns off. ●Only the line LED flashes. ●Compatible with an optional AC adapter. ●Includes tripod LEV-150 and receiver RCV-G. Applications: ●Laser level for setting reference points Specifications: ● Height (mm): 208 ● Width (mm): 126 ● Accuracy: ±1mm/7.5m or less ● Automatic correction range: ±2° ● Power supply: Dedicated lithium-ion rechargeable battery 7424 (included) ● Irradiation lines: Vertical lines (front, right, left), horizontal lines, large square lines, points (vertical, bottom) ● Light source: Green laser ● Wavelength (nm): Line 505nm, point 650 ● Laser safety standard: Class 2M ● Right angle accuracy: 9 0°±(2mm/7.5m)●Color: Green●Power supply (V): Dedicated lithium-ion rechargeable battery 7424 (included)●3 vertical directions, 1 horizontal direction, ground mark●Visibility: Save mode 150, Just mode 300●Irradiation line accuracy: Within ±0.81mm at 10m●Arrival point distance accuracy: Within ±1mm at 7.5m●Vertical point accuracy: Within ±1mm at 3m●Right and left accuracy: Within ±2mm at 15m●Dustproof and waterproof performance: Dustproof and waterproof design Material/Finish:●Exterior: ABS, aluminum, SUS, glass●Interior: Aluminum, copper, brass, ABS, PCB Set contents/Accessories:●Laser level unit●Receiver: RCV-G●Tripod: ELV-150●4 AA alkaline batteries●Dedicated carrying case●Shoulder belt Caution:●Be sure to check the accuracy before and after use according to the accuracy check method.●Using the product in a broken state may cause erroneous measurements. ●Product specifications may change without notice. ●Please note.
