Tajima Laser Level NAVI ZERON KJY ZERON-KJY 1 unit
Tajima Laser Level NAVI ZERON KJY ZERON-KJY 1 unit
Regular price
¥180,180
Regular price
Sale price
¥180,180
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

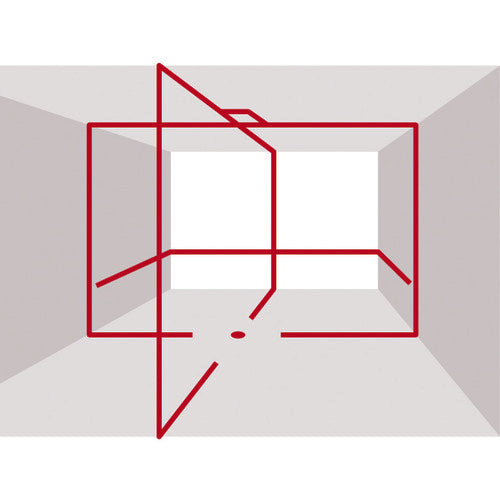

Catalog number: ZERON-KJY Features: ● Laser with NAVI function that can automatically align with the ground. ● Equipped with NAVI function, remote control rotation function, and light off/line/mode switching function. ● High-brightness laser that is easy to see even in bright places ● Equipped with 360° rotation fine adjustment function that allows precise alignment with the ground. Applications: ● For use as a laser marking device for setting reference points. Specifications: ● Height (mm): 190 ● Width (mm): 130 ● Accuracy: ±1mm/within 7.5m ● Automatic correction range: ±2° ● Power supply: 5 AA alkaline batteries (included), 4 AAA alkaline batteries (included) ● Protection rating: Dustproof and waterproof design ● Irradiation lines: Vertical lines (front, back, right, left), horizontal lines, large square lines, points (vertical, bottom) ● Light source: Visible light semiconductor laser ● Wavelength (nm): Line 635nm/Point 650nm ● Laser safety standard: Class 1M (JIS C 6802: 2005) ● Braking method: Magnet damper method ● Power supply (V): 5 AA alkaline batteries, 4 AAA alkaline batteries (included) ● Vertical 4-direction square, horizontal 1 direction, ground mark ● Reach distance accuracy (mm): ±1 at 7.5m Material/Finish: ● Exterior: ABS resin Set contents/accessories: ●5 AA alkaline batteries ●4 AAA alkaline batteries ●NAVI laser receiver 3 ●Laser receiver case ●Aluminum carrying case ●Shoulder strap Note: ●When attaching to the Elevator Tripod 3000, a tripod adapter (sold separately) is required.
