Tajima NAVI Zero G Sensor KJC Tripod Set ZEROGSN-KJCSET 1 S
Tajima NAVI Zero G Sensor KJC Tripod Set ZEROGSN-KJCSET 1 S
Regular price
¥421,278
Regular price
Sale price
¥421,278
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

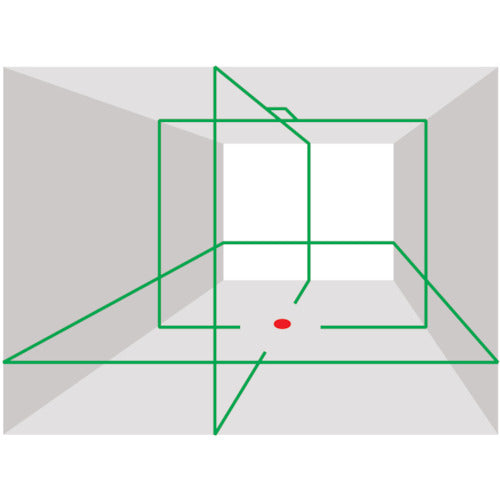

Catalog number: ZEROGSN-KJCSET Features: ●Direct green laser that is easy to see even in bright places. ●Sensor-type laser that is resistant to vibration. ●Equipped with NAVI function that automatically aligns the ground line. ●Equipped with a lithium-ion rechargeable battery that can be used for 11 hours in the entire horizontal direction. ●Compatible with 3-way power sources: lithium-ion rechargeable battery, AA battery box, and AC power source (sold separately). ●Tripod can be attached directly to the main unit. ●Comes with a sturdy stainless steel carrying case. Uses: ●Laser level for setting reference points Specifications: ●Length (mm): 223 ●Width (mm): 130 ●Accuracy: Within ±1mm/7.5m ●Automatic correction range: ±2° ●Power source: Lithium-ion rechargeable battery ●Irradiation lines: Vertical lines (front, back, right, left), entire horizontal direction, large square lines, points (vertical, bottom) ●Braking method: Sensor method ●Right angle accuracy: 90°±(2mm/7.5m) ●Color: Green ●Width (mm): 130 ●Height (mm): 223 ● Power source (V): Lithium-ion rechargeable battery ● Vertical 4-way square, horizontal all-around, ground mark ● Irradiation lines: vertical lines (front, back, right, left), horizontal all-around, large square lines, points (vertical, bottom) ● Control method: Sensor method ● Functions: With NAVI function ● Brightness 300, battery life 11 hours ● Vertical point accuracy: Within ±1mm at 3m ● Left-right accuracy: Within ±2mm at 15m ● Line emission angle: Vertical 130° / Horizontal 110° Material / Finish: ● Exterior: ABS resin Set contents / Accessories: ● Laser level: ZEROGSN-KJC ● Receiver: RCV-GNAVI ● Tripod: ELV-150 ● Lithium-ion rechargeable battery 7424 x 1 ● Charging cable set PU1 ● Shoulder belt ● Dedicated carrying case
