Tani Laser Beam Saw Aurora LBS-AURORA305X1.6X25.4HX260Z 1 piece

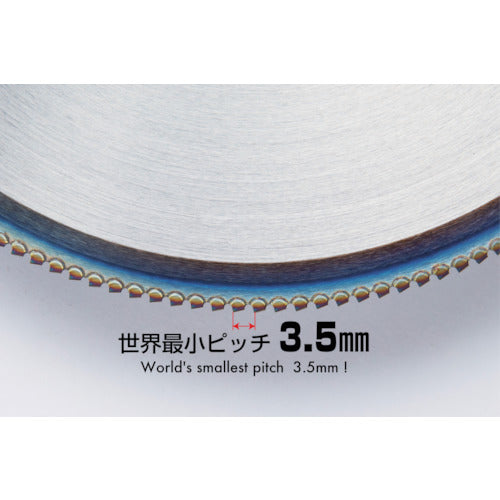

Catalog number: LBS-AURORA305X1.6X25.4HX260Z Features: ●Ultra-thin blade 1.0-1.6mm, so it generates little heat and can cut thermoplastics and carbon fiber reinforced plastics that melt easily in heat without melting the material. ●Sharp cutting edge cleanly cuts the "tangles" of fibers that occur on the cutting surface of aramid fiber reinforced plastics. ●World's smallest pitch 3.5mm. ●Ultra-thin blade 1.t, so it generates little heat and can cut thermoplastics and carbon fiber reinforced plastics that melt easily in heat without melting the material. ●Ultra-thin blade 1.6t, so it generates little heat and can cut thermoplastics and carbon fiber reinforced plastics that melt easily in heat without melting the material. Applications: ●Cutting aramid fiber reinforced plastic (AFRP) ●Cutting thermosetting carbon fiber reinforced plastic (CFRP). ●Cutting thermoplastic carbon fiber reinforced plastic (CFRTP). ●Cutting resin, plastic, and FRP. Specifications: ●Outer diameter (mm): 305 ●Blade thickness (mm): 1.6 ●Hole diameter (mm): 25.4 ●Number of blades: 260 ●Maximum operating speed (rpm): 3600 ●Number of blades (pieces): 260 ●Outer diameter x blade thickness x inner diameter (mm): 305 x 1.6 x 25.4H ●Number of blades 260Z ●Special surface treatment (coating) ●Applicable cutting machine: Makita cutting machine LS1213 Material/Finish: ●Base metal: SKS ●Chip: Carbide ●Carbide tip ●SKS
