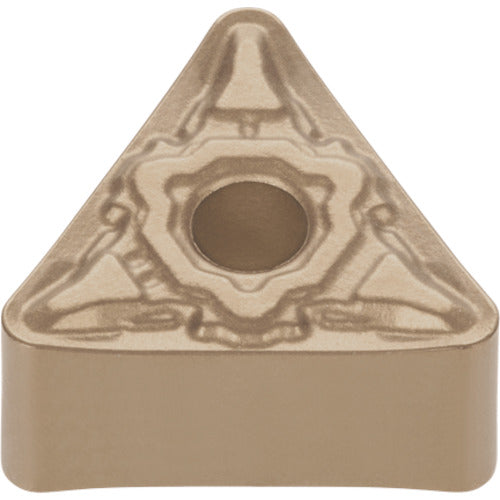

Tungaloy Insert CVD Coating T9225 TNMG110404E-TSF 10 pieces

Catalog number: TNMG110404E-TSF Features: ● Achieves excellent chipping resistance. ● First recommended material for medium to rough machining. Applications: ● For turning and grooving. Specifications: ● Suitable workpiece: Steel ● Insert shape: Triangle ● Thickness (mm): 4.76 ● Machining type: Continuous machining ● Cutting edge length (mm): 11 ● Corner R (mm): 0.4 ● Hole diameter (mm): 2.26 ● Inscribed circle (mm): 6.35 ● Cutting speed (Vc) = 250 m/min ● Feed f = 0.28 mm/rev ● Depth of cut = 2.0 mm ● Cutting oil: Water-soluble Material/Finish: ● CVD coating
