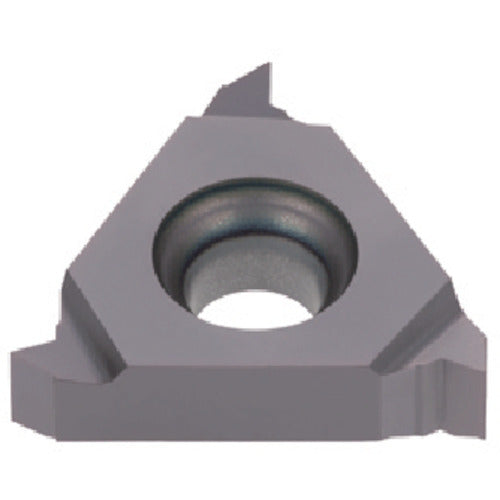

Tungaloy Tang Thread External 55° Thread Insert ER-55 AH725 16ERAG55 5 pieces

Catalog number: 16ERAG55 Features: ● 55° thread insert for external diameter. Applications: ● For thread cutting. Specifications: ● Suitable workpiece materials: steel, stainless steel, cast iron, hard-to-cut materials ● Corner radius (mm): 0.07 ● Thread cutting insert size: 16 ● Minimum pitch: 0.500 ● Maximum pitch: 3.000 ● Minimum number of teeth: 8.00 ● Maximum number of teeth: 48.00 ● Direction: R ● Inscribed circle diameter (mm): 9.525 ● X-direction blade position (mm): 1.6 ● Y-direction blade position (mm): 1.1 ● 55° thread for external diameter ● Standard blade Material/Finish: ● General-purpose PVD coating material type
