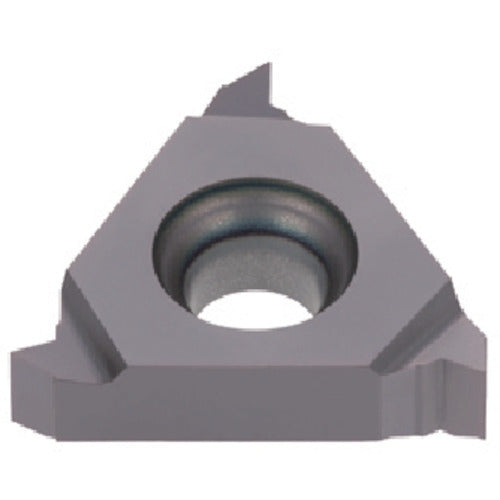

Tungaloy Tang Thread External 55° Thread Insert ER-55 TH10 16ERA55 5 Pieces

Catalog number: 16ERA55 Features: ● 55° thread insert for external diameter. Applications: ● For thread cutting. Specifications: ● Suitable work material: steel, stainless steel, cast iron, non-ferrous metals ● Corner radius (mm): 0.07 ● Thread cutting insert size: 16 ● Minimum pitch: 0.500 ● Maximum pitch: 1.500 ● Minimum number of teeth: 16.00 ● Maximum number of teeth: 48.00 ● Direction: R ● Inscribed circle diameter (mm): 9.525 ● X-direction blade position (mm): 0.9 ● Y-direction blade position (mm): 0.7 ● 55° thread for external diameter ● Normal blade
