（株）タンガロイ

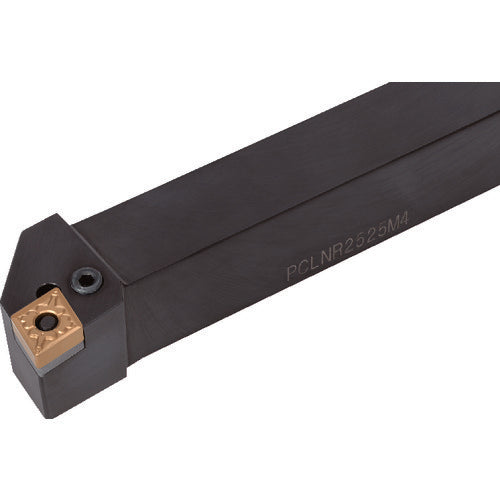

Tungaloy Tang Turn External Turning Tool PCLNR/L PCLNR3225P16E 1 pc
Tungaloy Tang Turn External Turning Tool PCLNR/L PCLNR3225P16E 1 pc
Regular price
¥12,474
Regular price
Sale price
¥12,474
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: PCLNR3225P16E Features: ● Lever lock type external turning tool. Applications: ● For external turning. Specifications: ● Direction: R ● Shank height (mm): 32.0 ● Shank width (mm): 25.0 ● Reference length (mm): 150.00 ● Head length (mm): 31.0 ● Reference height (mm): 32.0 ● Reference width (mm): 32.00 ● Corner radius (mm): 1.2 ● P-series for external machining ● Lever lock type tool ● Approach angle 95° ● Insert used: negative 80° diamond shape
