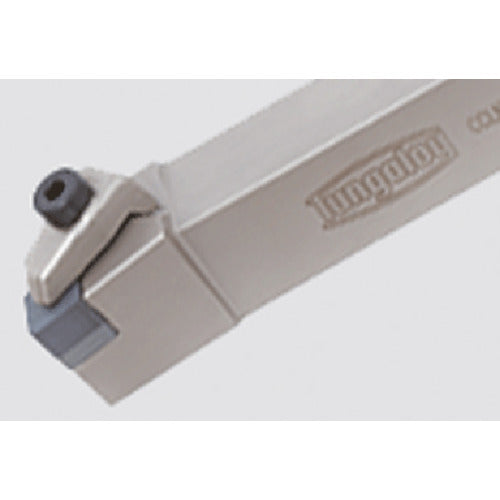

Tungaloy Dimple FX External Diameter Machining Tool CCLNR/L-RD CCLNR3225P1207-RD 1 pc
Tungaloy Dimple FX External Diameter Machining Tool CCLNR/L-RD CCLNR3225P1207-RD 1 pc
Regular price
¥25,740
Regular price
Sale price
¥25,740
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: CCLNR3225P1207-RD Features: ●Double clamp type external diameter machining tool. Applications: ●For turning. Specifications: ●Direction: R ●Shank height (mm): 32.0 ●Shank width (mm): 25.0 ●Reference length (mm): 170.00 ●Head length (mm): 33.0 ●Reference height (mm): 32.0 ●Reference width (mm): 32.00 ●Corner radius (mm): 1.20 ●DimpleFX series for external diameter machining ●Double clamp tool ●Approach angle 95° ●Insert used: negative 80° diamond dimpled ceramics
