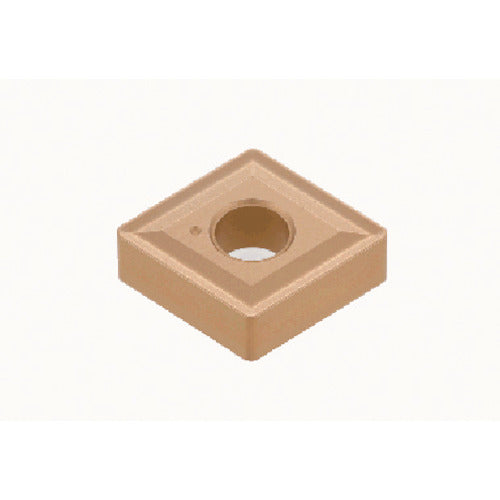

Tungaloy Turning Insert Cermet GT720 CNMG090308 10 Pieces

Catalog number: CNMG090308 Features: ● Achieves excellent wear resistance in high-speed milling. Applications: ● Workpiece: Steel, cast iron. Specifications: ● Suitable workpiece: Steel, cast iron ● Insert shape: Diamond 80° ● Coating: PVD ● Corner radius (mm): 0.8 ● Thickness (mm): 3.18 ● Blade length (mm): 9.7 ● Insert clearance angle (°): 0 ● Machining type: Continuous machining, weak intermittent machining ● Cutting edge length (mm): 9.7 ● Hole diameter (mm): 3.81 ● Inscribed circle (mm): 9.525 ● Corner R (mm): 0.8 ● Turning insert Cermet material for steel Material/Finish: ● Cermet + PVD coating
