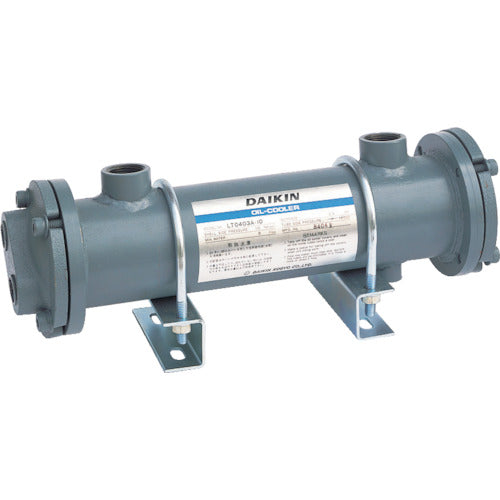

Daikin Oil Cooler LT0504A-10 1 unit

Catalogue number: LT0504A-10 Features: ● An oil cooling device (water-cooled type) that has a large cooling capacity with a small amount of water. ● For use with fresh water and construction water. (Seawater cannot be used) ● Brazed to ensure heat transfer from the fins. ● Spiral fins agitate the oil. ● Can be installed 360° freely. ● Legs can be welded as is. Applications: ● For use with fresh water and construction water. (Seawater cannot be used) Specifications: ● Maximum flow rate (L/min): 50 ● Heat transfer area (［［m2］］): 0.4 ● Overall length x overall height (mm): 504 x 132 ● Brazed to ensure heat transfer from the fins ● Spiral fins agitate the oil ● Can be installed 360° freely ● Legs can be welded as is
