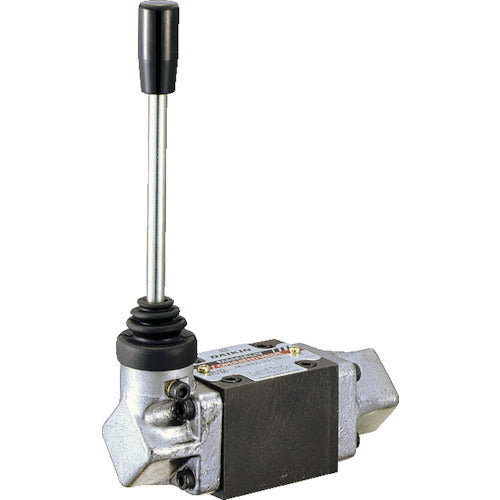

Daikin Manually Operated Valve Nominal Size 1/4 JM-G02-66N-20 1 unit

Catalog number: JM-G02-66N-20 Features: ●Directional control valve that switches the oil flow direction by directly operating the spool with a manual lever. ●Handle operation is easy even at high pressure. ●Can be installed on BT series standard manifolds. Specifications: ●Spool operation method: No-spring type (with detent) 3-position valve ●Installation type: Gasket ●Nominal diameter: 1/4 ●Maximum operating pressure (MPa): 21 ●Maximum flow rate (L/min): 30 ●Maximum operating pressure: 21MPa ●Maximum flow rate: 30L/min
