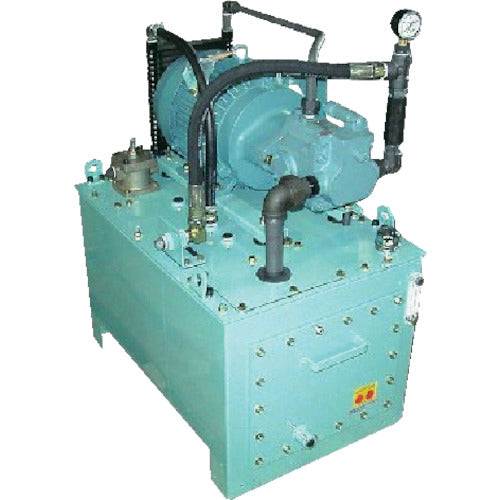

Daikin general-purpose hydraulic unit NT06M15N22-20 1 unit

Catalog number: NT06M15N22-20 Features: ●A wide variety of options, including control systems, oil level switches, temperature switches, and water coolers, are modularized for easy installation, and can be easily retrofitted even after delivery. ●In addition to the energy savings achieved by the V pump, a feathering circuit has been added to further increase energy savings. ●All models come standard with a radiator, which keeps the oil temperature low and extends the life of the oil. ●A wide variety of options, including control systems, oil level switches, temperature switches, and water coolers, are modularized for easy installation, and can be easily retrofitted even after delivery. ●Mass production allows for short delivery times. ●In addition to the energy savings achieved by the V pump, a feathering circuit has been added to further increase energy savings. ●The fixed leg position has flexibility in all directions. ●On top of the tank. Specifications: ● Maximum operating pressure (MPa): 21 ● Oil tank capacity (L): 60 ● Noise level (dB): 67 ● Motor (kW) (4P): 2.2 ● Discharge volume (L/min) 50Hz: 20 ● Discharge volume (L/min) 60Hz: 25 ● External dimensions (mm): 660 x 520 x 862 ● Motor capacity (KW equivalent)
