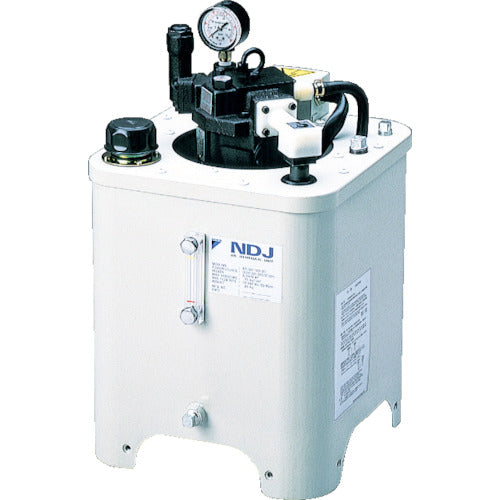

Daikin hydraulic unit NDJ81-152-30 1 unit

Catalog number: NDJ81-152-30 Features: ●Lightweight and compact design. ●Low noise: The pump and motor are placed inside the tank, and the tank itself acts as a soundproof wall, preventing noise from escaping to the outside. ●Low oil temperature rise: The hollow tank system has a large radiation area, and the motor cooling fan also forcibly cools the inner tank wall and pump surface to prevent oil temperature rise. ●The pump and motor are placed inside the tank, and the tank itself acts as a soundproof wall, preventing noise from escaping to the outside. ●The hollow tank system has a large heat dissipation area, and the motor cooling fan also forcibly cools the inner tank wall and pump surface to prevent oil temperature rise. ●Compact design requires less installation space. Specifications: ● Maximum operating pressure (MPa): 7.0 ● Oil tank capacity (L): 15 ● Motor capacity (kW): 1.5 ● Noise level (dB): 65 ● Electric motor (kW) (4P): 1.50 ● Discharge volume (L/min) 50Hz: 6-11 ● Discharge volume (L/min) 60Hz: 7-14 ● External dimensions (mm): 355 x 330 x 547
