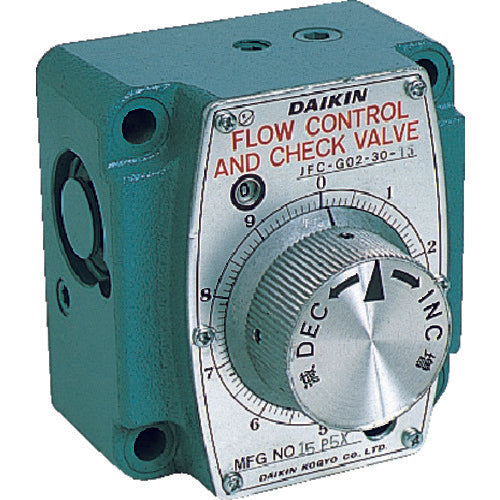

Daikin Flow Control Valve Gasket Mounting Type Nominal Diameter 1/4 JFC-G02-30-15 1 pc

Catalogue number: JFC-G02-30-15 Features: ● Equipped with pressure and temperature compensation, the set flow rate remains constant even if the load pressure and oil temperature change. ● The flow rate adjustment handle rotates four times, making fine adjustments and resetting easy. ● It can control a wide range of flow rates from minute to large. ● Options such as a key for locking the flow rate adjustment handle and a jumping prevention mechanism are available. Specifications: ● Type: With check valve ● Nominal diameter: 1/4 ● Installation type: Gasket ● Flow rate adjustment range (L/min): 0.03 to 30 ● Maximum operating pressure: 21MPa
