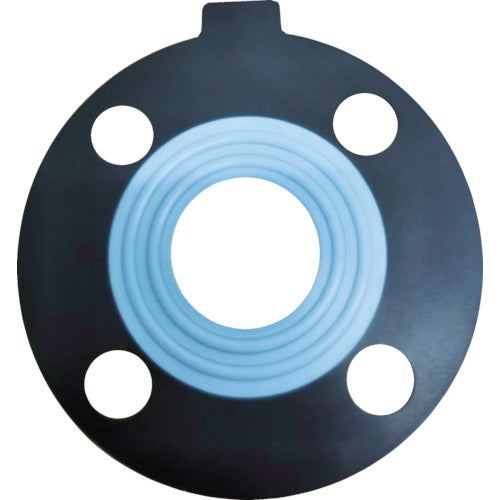

Daiko D packing (PTFE coated) Nominal diameter (A): 20 DP-PTFE-10K-20A 1 piece

Catalog number: DP-PTFE-10K-20A Features: ●This gasket material is made by pressurizing and heating EPDM rubber molded products with PTFE film, and then bonding them together. ●It has both the elasticity characteristic of rubber and the corrosion resistance of PTFE, and has excellent sealing properties. ●It is suitable for flanges where the chemical resistance and corrosion resistance of PTFE are required and tightening surface pressure cannot be obtained. ●It has a double O-ring-like uneven part, and has high sealing performance even at low surface pressure. Applications: ●Building facility piping, PVC piping, chemical resistant piping, glass-lined piping, etc. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Inner diameter (mm): 22 ●Outer diameter (mm): 98 ●Thickness (mm): 3 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 75 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 15 ●Maximum operating pressure: 0.98MPa ●Operating temperature range: -40 to 100°C ●Fully gasketed Material/Finish: ●EPDM rubber ●Fluoroplastic resin (Fluoroplastic resin (PTFE))
