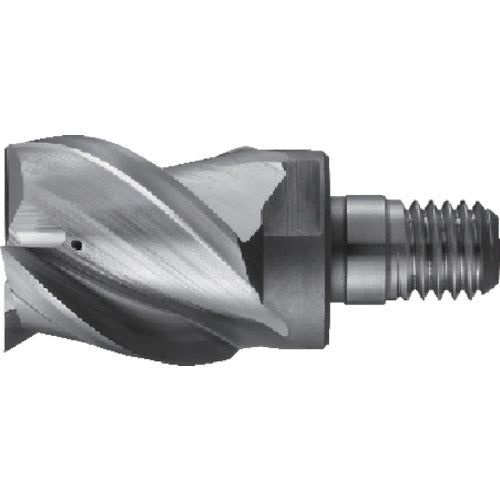

Dijet Aluminum S-head SMAL-3220-M10 1 piece

Catalog number: SMAL-3220-M10 Features: ●Solid modular head that can be set on the all-carbide shank "Ganko Ittetsu". The dimensional variations of Ganko Ittetsu allow for a variety of overhanging lengths. ●The positive blade shape with a helix angle of 45° and a rake angle of 20° provides excellent cutting performance and enables high-precision machining. ●Each blade has a coolant hole to ensure that the cutting edge is cooled, preventing welding of the workpiece and improving chip removal. ●Also available in O-size (tool diameter > shank diameter), allowing machining near walls. Uses: ●Cutting materials: aluminum, non-ferrous metals Specifications: ●Blade diameter (mm): 22 ●Blade length (mm): 22 ●Number of teeth (pieces): 3 ●Total length (mm): 31 ●Twist angle (°): 45 ●Number of teeth: 3 ●For machining aluminum ●3 blades, twist angle 45° ●Blade length 1D Material/Finish: ●Carbide alloy Caution: ●When installing the S head, observe the recommended tightening torque and be careful not to over-tighten.
