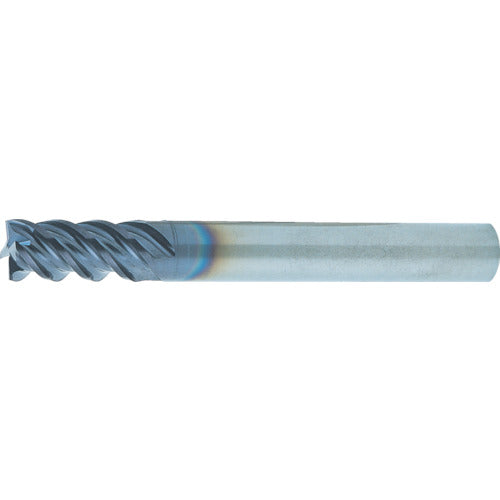

Dijet Super One Cut End Mill (4-blade, regular blade length, slim shank) 22 mm R3 DZ-SOCS4220S20-30 1 piece

Catalog number: DZ-SOCS4220S20-30 Features: ●By adopting our proprietary breaker groove (patent pending), we have achieved both high chip removal performance and tool rigidity. (High feed and groove processing is possible.) ●It is an all-purpose tool for general steel, stainless steel, and high hardness materials (up to 50HRC). Applications: ●Cutting materials: carbon steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel (up to 43HRC), cast iron, ductile cast iron (up to 350HB), hardened steel (up to 50HRC), stainless steel (up to 35HRC). Specifications: ● Blade diameter (mm): 22 ● Blade length (mm): 40 ● Shank diameter (mm): 20 ● Number of blades (pieces): 4 ● Total length (mm): 130 ● Surface treatment: DZ coating (TiAlN type) ● Twist angle (°): 45° ● Outer diameter (mm): 22 ● Corner R (mm): 3 ● Twist angle 45° ● Made in an ISO14001 certified factory Material/Finish: ● Carbide
