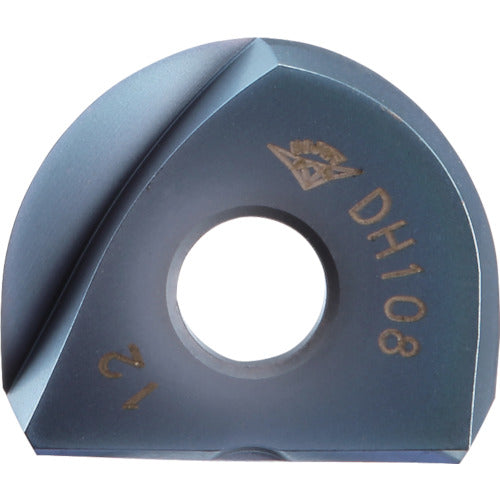

Dijet Mirror Ball Tip DH108 BNM-080-SS 2 pieces

Catalog number: BNM-080-SS Features: ●This is an insert for finishing machining of the high-precision replaceable tip ball end mill "Mirror Ball BNM/MBX type". It can achieve high-precision finishing machining equal to or higher than that of solid ball end mills. Tip R accuracy is ±6μm or less, and R accuracy when assembled with a holder is ±10μm or less. ●A wide variety of insert shapes and materials are available to handle all work materials. ●The sharp S-shaped blade is ideal for high-speed finishing machining. Uses the new general-purpose coating material DH108. Stable machining and improved life are possible for a wide range of work materials, from carbon steel to difficult-to-cut materials. Applications: ●Work materials: carbon steel, alloy steel, cast iron, stainless steel, pre-hardened steel, hardened steel (up to 60HRC), titanium alloy, heat-resistant alloy. ●For shape and copy machining finishing. Specifications: ● Compatible holder: BNM()08-type ● Number of blades: 2 ● Material: DH108 ● Surface treatment: DH coat ● R dimension (mm): 4 ● Number of blades (pieces): 2 ● Blade diameter (mm): 8 ● Tip for mirror ball ● Tool diameter: φ6 (R3) to φ32 (R16) Φ6 (3R) and Φ8 (4R) shank type main body used, Φ10 (5R) to Φ32 (R16) modular type and shank type main body used Material/Finish: ● Carbide alloy
