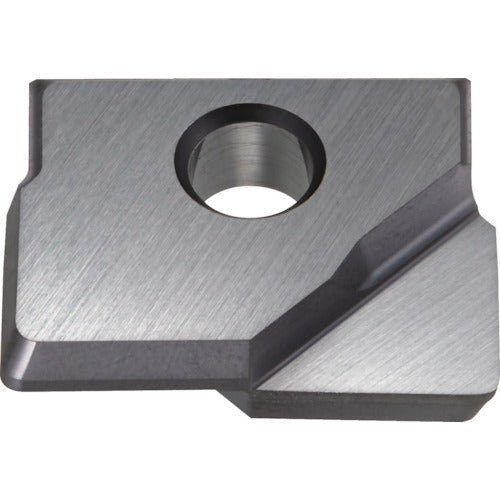

Dijet Mirror Radius Tip DH103 RNM-250-R05 2 pieces

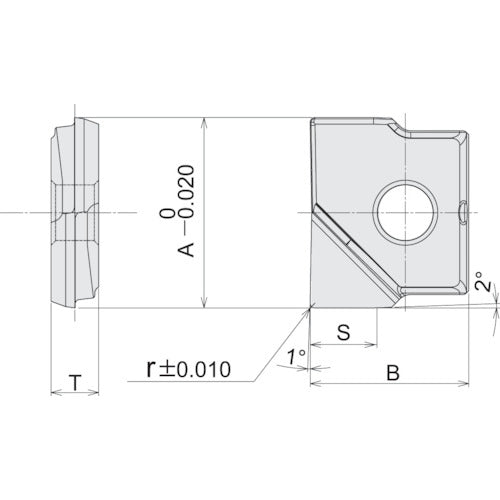

Catalog number: RNM-250-R05 Features: ● Replaceable blade radius end mill for finishing. ● Achieves high-precision finishing that is equal to or better than solid end mills. ● Achieves tip corner R accuracy of ±10μm or less, and bottom blade runout accuracy of 5μm or less. ● Wide variety of corner R variations (R0 to R3). ● Can also be used with mirror ball bodies. Applications: ● Workpiece materials: carbon steel, pre-hardened hard, die steel, stainless steel, hardened steel (up to 55HRC), cast iron, etc. Specifications: ● Tool diameter φ25 x corner R0.5 Material/Finish: ● Carbide alloy
