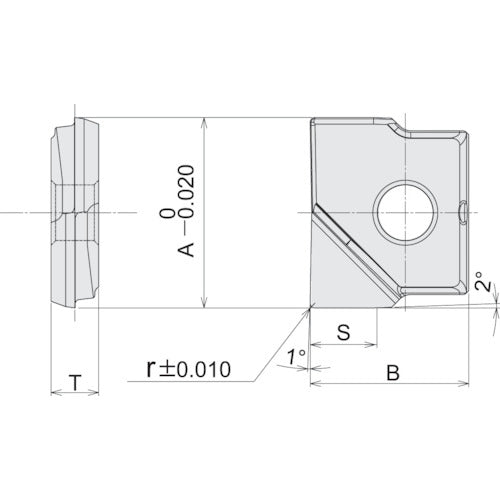

Dijet Mirror Radius Tip DH103 RNM-320-R20 2 pieces

Catalogue number: RNM-320-R20 Features: ●Replaceable blade radius end mill for finishing. ●Achieves high-precision finishing that is equal to or better than solid end mills. ●Realizes tip corner R accuracy of ±10μm or less, and bottom blade runout accuracy of 5μm or less. ●A wide variety of corner R variations (R0 to R3). ●Can also be used with mirror ball bodies. Applications: ●Cutting materials: carbon steel, pre-hardened hard, die steel, stainless steel, hardened steel (up to 55HRC), cast iron, etc. Specifications: ●Tool diameter φ32 x corner R2 Material/Finish: ●Carbide alloy
