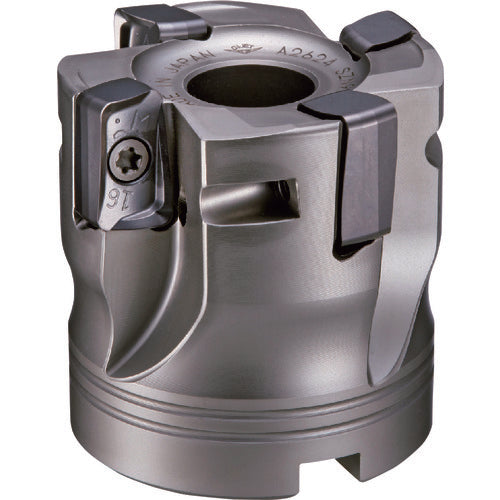

Dijet replaceable blade cutter Shoulder Extreme Bore type 7 blades φ80 GBODY EXSAP-7080R-27 1 unit

Catalog number: EXSAP-7080R-27 Features: ●The axial depth of cut (ap) can be as large as a maximum of 15 mm, making it suitable for a wide range of applications, including flat cutting, groove cutting, and plunge machining. Applications: ●For shoulder cutting. Specifications: ●Number of teeth CICT (pieces): 7 ●Cutting diameter DC (mm): 80 ●Total length OAL (mm): 50 ●Compatible chip: ZNGU1709〇〇ZER-PM ●Shank diameter (mm): 56 ●Blade diameter (mm): 80 ●Number of teeth: 7 ●Number of teeth (pieces): 7 ●Total length (mm): 50 ●Bore type milling cutter
