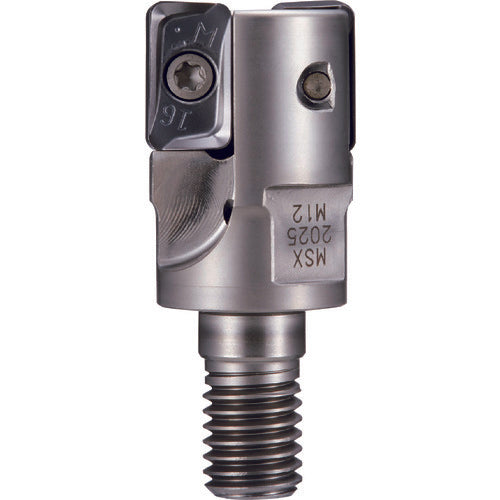

Dijet replaceable blade cutter Shoulder Extreme Modular head type 2 blades φ28 GBODY MSX-2028-M12 1 unit

Catalog number: MSX-2028-M12 Features: ●Highly efficient machining with a maximum cutting depth ap = 15 mm is possible. ●The chip is economical as it uses 4 corners on both sides. ●Modular head type. Applications: ●For shoulder milling. Specifications: ●Number of teeth CICT (pieces): 2 ●Cutting diameter DC (mm): 28 ●Total length OAL (mm): 35 ●Compatible chip: ZNGU1709〇〇ZER-PM ●Shank diameter (mm): 22 ●Blade diameter (mm): 28 ●Number of teeth: 2 ●Number of teeth (pieces): 2 ●Total length (mm): 35 ●Modular head type
