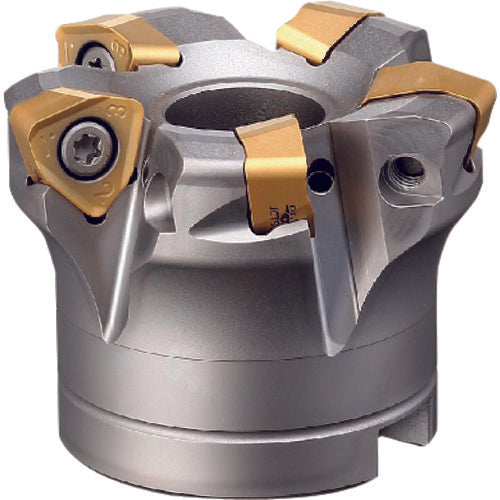

Dijet replaceable blade high feed cutter SKS Extreme bore type 6 blades φ80 hole diameter inch size EXSKS-6080R 1 unit

Catalogue number: EXSKS-6080R Features: ●Next-generation high-feed cutter that realizes extremely high-feed machining. ●Achieves a high feed rate of fz=2mm/t per tooth with a maximum axial depth of cut of 3mm. ●Economical chip with 6 corners on both sides. Applications: ●For high feed rates. Specifications: ●Number of teeth CICT (pieces): 6 ●Cutting diameter DC (mm): 80 ●Total length OAL (mm): 70 ●Compatible chip: WNMU090720ZER-PM ●Blade diameter (mm): 80 ●Number of teeth: 6 ●Number of teeth (pieces): 6 ●Total length (mm): 70 ●Mounting diameter (mm): 65 Material/Finish: ●Iron
