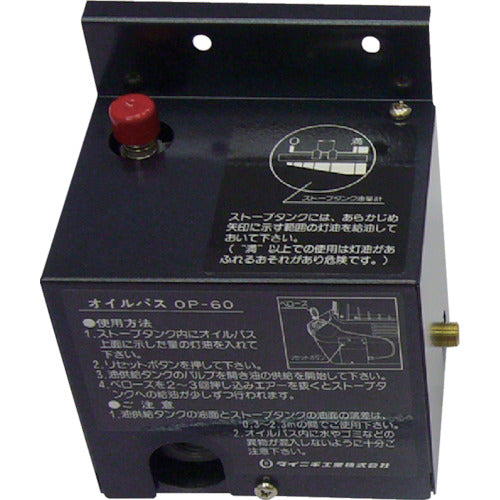

Dainichi Blue Heater Optional Parts Oil Pass OP-60 7190003 OP-60 1 S

Catalog number: OP-60 Features: ● An oil path exclusively for the Dainichi FM series that enables automatic refueling from an outdoor stationary tank or a separate tank. ● The oil path adjusts the amount of kerosene, and the amount of kerosene in the stove tank is kept constant. Applications: ● An automatic refueling device exclusively for the Dainichi commercial stove FM series (a commercially available separate tank and oil-resistant hose are required separately). Specifications: ●Main body dimensions (mm) width: 95 ●Main body dimensions (mm) depth: 75 ●Main body dimensions (mm) height: 85 ●Product name: Oil pass ●Compatible models: FM-105F, FM-106F, FM-107F, FM-10F, FM-10F2, FM-195F・N, FM-196F・N, FM-197F・N, FM-19F・N, FM-19F2・N2 Set contents/accessories: ●Oil pass main unit ●Connection pipe ●Oil pass oil filler cap ●Mounting plate ●Oil delivery pipe ●Flare pipe ●Flare bolt ●Wire band ●3 screws Caution: ●A separately sold tank and oil-resistant hose are required for use.
