ジャブスコ

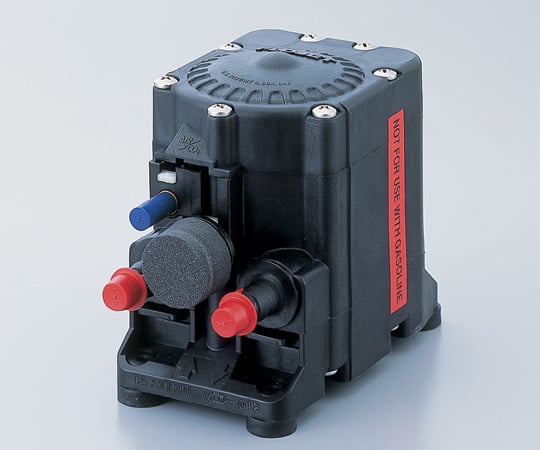

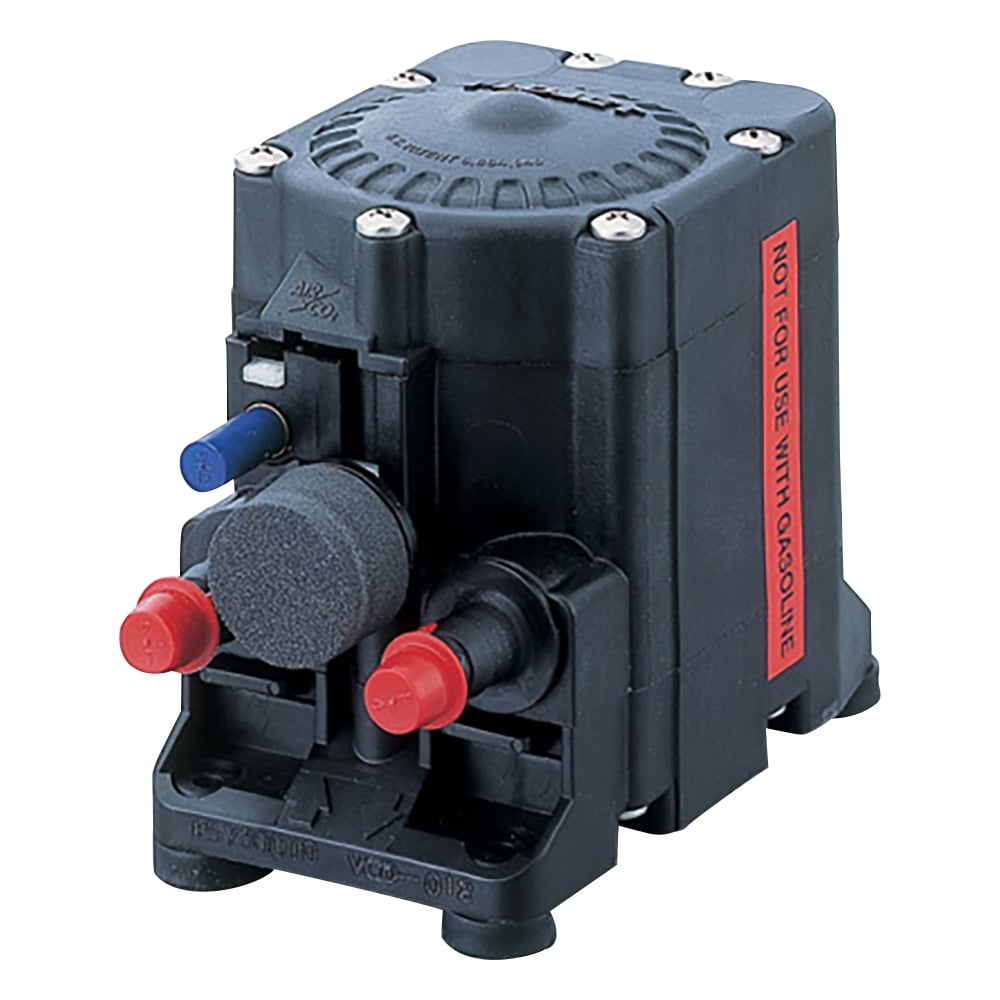

Diaphragm pump 18900mL/min G573205A 1 unit
Diaphragm pump 18900mL/min G573205A 1 unit
Regular price
¥68,860
Regular price
Sale price
¥68,860
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
It is small, lightweight and completely self-priming.
Viton is used in the liquid contact area, so various liquids can be used. Material: Liquid contact area/PP (polypropylene), diaphragm valve/Viton(R)
Size: 116 x 134 x 82 mm
Maximum air pressure: 6.9kg/cm2
Port opening: 1/2″
Air outlet: 1/4″
Weight: 540g
Maximum self-priming force: 6.1m
Operating temperature: Maximum 49°C
Viscosity: Maximum 250 cP
Maximum flow rate: 18.9L/min
Maximum discharge pressure: 6.9kg/cm2
Uses: For cleaning machines, chemical equipment, and industrial equipment in general.
