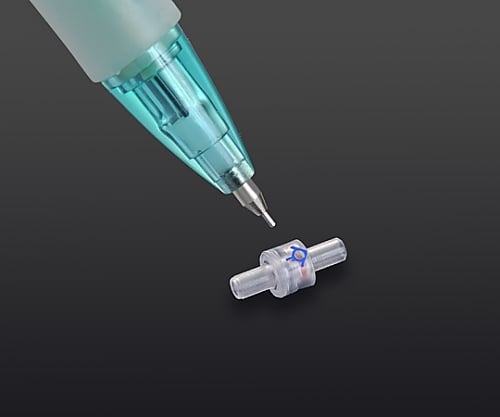

Diaphragm type micro check valve IMCD116P 1 piece

Ultra-compact backflow prevention connector for soft tubes with built-in diaphragm valve. Material: Body: PP, Valve: Silicone Maximum diameter x length: 4.8 x 11.5 mm Applicable tube inner diameter: Soft tube/1/16”～2mm, Semi-hard tube/2mm Operating temperature: +4 to 48°C Pressure resistance: 68kPa Cracking Pressure: 0.2kPa RoHS2 (EU)2015/863 compliant [About RoHS]
