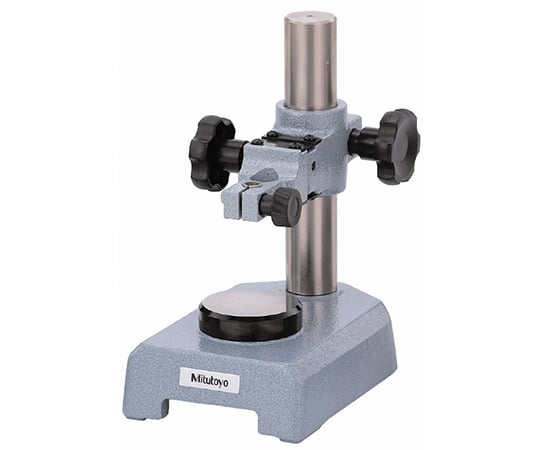

Dial gauge stand 7002-10 BSD-2X 1 set

This is a convenient stand for attaching dial gauges and other items for measurement. A parallel spring is used for fine vertical movement, allowing fine adjustment with a single touch. [Notes] Squareness of mounting hole to measuring table: 0.4/100mm or less. When mounting a high-precision linear gauge (with a resolution of 0.1 μm or less) to this stand, the indicated value may be affected depending on the perpendicularity of the mounting hole in relation to the top surface of the measuring table. Small dial gauges (outer frame φ31, 36) cannot be used. Measuring table: Flat measuring table (φ58) Flatness of reference surface (μm): 1.3 Base dimensions (mm): W168 x D110 x H45 Micro-adjustment mechanism (adjustment range): Parallel spring (1mm) Mounting hole: φ9.53, with φ8 bush
