Daiwa Adtec Adjuster Bolt Mounting Nut PN-1-12 1 pc

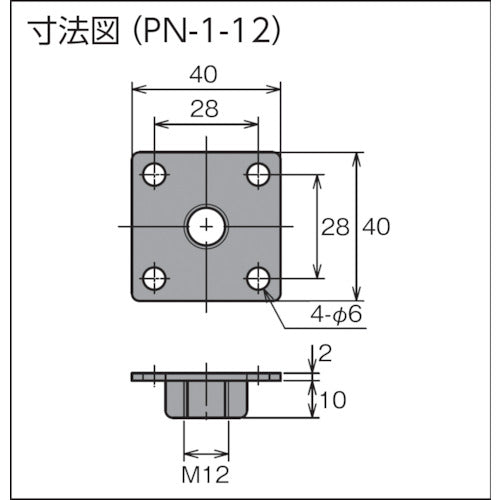

Catalog number: PN-1-12 Features: ●Adjustment bolts can be attached by simply drilling holes in two places (M8, M10) or four places (M12, M16, M20) that match the pitch of the mounting machine. ●Reduces the trouble of welding. Specifications: ●Compatible adjuster screw dimensions: M12 ●A (mm): 40 ●B (mm): 40 ●Dimension (mm) A: 40 ●Dimension (mm) B: 40 ●Dimension (mm) X: 28 ●Dimension (mm) Y: 28 ●Number of holes (pcs): 4 ●Hole diameter (mm): 6 ●Equivalent to SS400 Material/Finish: ●Steel ●Surface treatment: Trivalent chromate
