Daiwa Adtec Adjuster Bolt Mounting Nut PN-2-16 1 pc

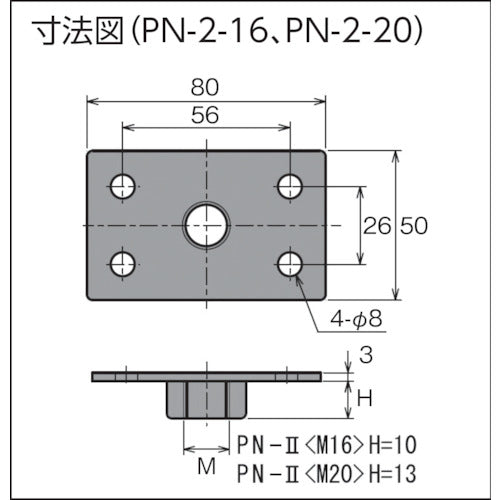

Catalog number: PN-2-16 Features: ●Adjustment bolts can be attached by simply drilling holes in two places (M8, M10) or four places (M12, M16, M20) that match the pitch of the mounting machine. ●Reduces the trouble of welding. Specifications: ●Compatible adjuster screw dimensions: M16 ●A (mm): 80 ●B (mm): 50 ●Dimension (mm) A: 80 ●Dimension (mm) B: 50 ●Dimension (mm) X: 56 ●Dimension (mm) Y: 56 ●Number of holes (pcs): 4 ●Hole diameter (mm): 8 ●Equivalent to SS400 Material/Finish: ●Steel ●Surface treatment: Trivalent chromate
