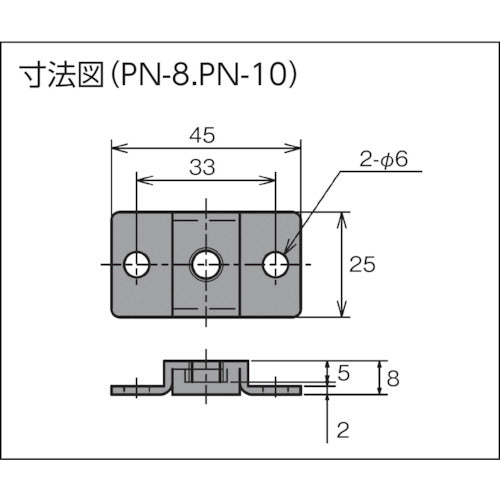

Catalog number: PN-8 Features: ●Adjustment bolts can be attached by simply drilling holes in two places (M8, M10) or four places (M12, M16, M20) that match the pitch of the mounting machine. ●Reduces the trouble of welding. Specifications: ●Compatible adjuster screw dimensions: M8 ●A (mm): 45 ●B (mm): 25 ●Dimension (mm) A: 45 ●Dimension (mm) B: 25 ●Dimension (mm) X: 33 ●Number of holes (pieces): 2 ●Hole diameter (mm): 6 ●Equivalent to SS400 Material/Finish: ●Steel ●Surface treatment: Trivalent chromate
