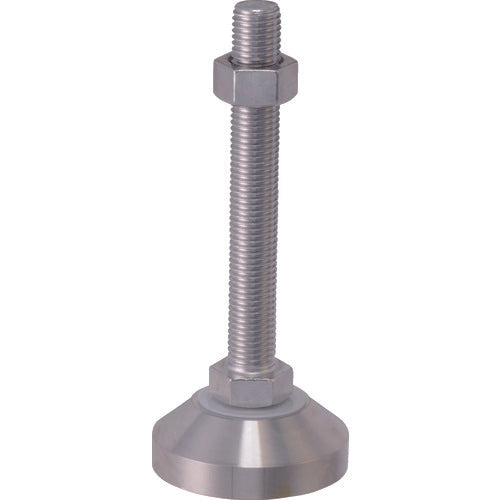

Daiwa Adtec Heavy Duty Bearing (Stainless Steel) DH-24-200SUS 1 piece

Catalog number: DH-24-200SUS Features: ● Suitable for adjusting heavy machinery. ● Uses a large diameter bolt, providing excellent stability. ● Smooth adjustment is possible even for machines that are not particularly heavy. Applications: ● A bearing-integrated adjuster with a large base for heavy loads, allowing smooth level adjustment. ● Covered with a PP washer to prevent dust from entering the thrust bearing. ● To ensure smooth movement of the bearing, use a load of up to 1 ton if possible. Specifications: ● Allowable load (kgf): 5000 ● Screw dimensions: M24 ● Screw length (mm): 200 ● Total height (mm): 246.5 ● Base diameter (mm): 80 ● Material: Equivalent to SUS304 ● Passivated Material/Finish: ● Screw: Equivalent to SUS304 ● Base: Forged SUS304 ● Surface treatment: Passivated
