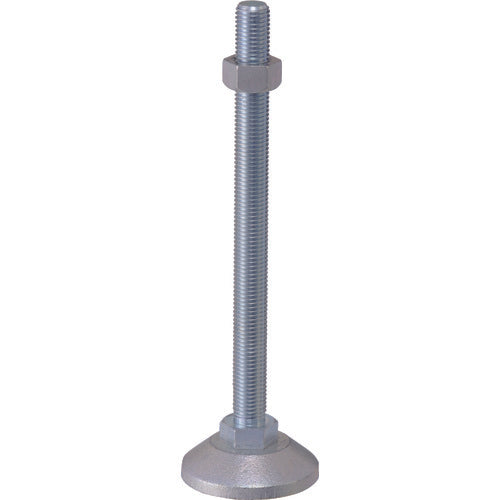

Daiwa Adtec Heavy Duty Long Screw Type DCL-20-300 1 pc

Catalogue number: DCL-20-300 Features: ● The tray is a forged product. ● The protruding part of the bolt passes through the hole in the tray and protrudes from the bottom of the tray. ● The protruding part is pressed in place so the bolt will not fall out. ● The bottom of the bolt has a + mark for easy installation. ● The screw shaft rotates and tilts slightly. Uses: ● A long screw type adjuster that can jack up the upper object higher. Specifications: ● Allowable load (kgf): 4000 ● Screw dimensions: M20 ● Screw length (mm): 300 ● Total height (mm): 335 ● Base diameter (mm): 80 ● Material: SS400 equivalent ● Trivalent chromate Material/Finish: ● Screw: SS400 equivalent ● Base: SS400 forged ● Surface treatment: Trivalent chromate
