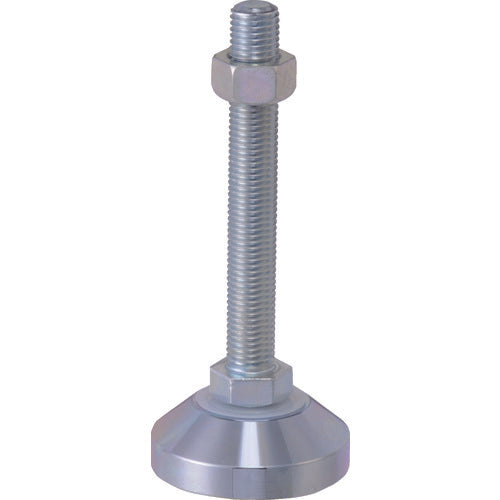

Daiwa Adtec Heavy Duty (with bearings) DH-30-150 1 piece

Catalog number: DH-30-150 Features: ● Suitable for adjusting heavy machinery. ● Uses a large diameter bolt, so it is extremely stable. ● Smooth adjustment is possible even for machines that are not particularly heavy. Applications: ● A bearing-integrated adjuster with a large base for heavy loads, allowing smooth level adjustment. ● Covered with a PP washer to prevent dust from entering the thrust bearing. ● To ensure smooth movement of the bearing, please use it with a load of up to 1 ton if possible. Specifications: ● Allowable load (kgf): 7000 ● Screw dimensions: M30 ● Screw length (mm): 150 ● Total height (mm): 205.5 ● Base diameter (mm): 100 ● Material: SS400 equivalent ● Trivalent chromate Material/Finish: ● Screw: SS400 equivalent ● Base: SS400 forged ● Surface treatment: Trivalent chromate
