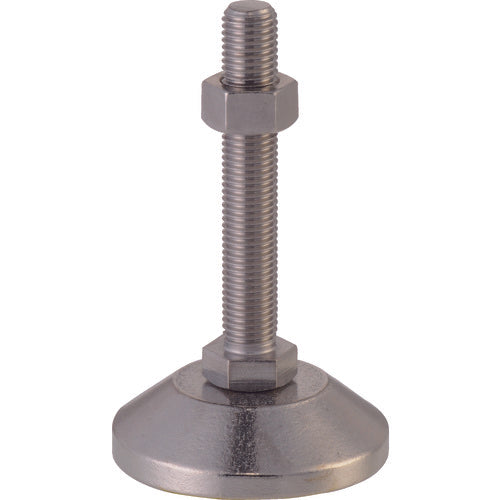

Daiwa Adtec Heavy Duty Wide Tray (Stainless Steel) D-C3-20-100SUS 1 pc

Catalog number: D-C3-20-100SUS Features: ● The tray is a forged product. ● The protruding part of the bolt passes through the hole in the tray and protrudes from the bottom of the tray. ● The protruding part is pressed in place so the bolt will not fall out. ● The bottom of the bolt is marked with a + sign for easy installation. ● The screw shaft rotates and tilts slightly. Applications: ● This is a heavy-duty adjuster with a large base (φ80, φ100) that has a wide adhesive surface to the floor. Specifications: ● Allowable load (kgf): 4000 ● Screw dimensions: M20 ● Screw length (mm): 100 ● Total height (mm): 135 ● Base diameter (mm): 80 ● Material: SUS304 equivalent ● Passivated Material/Finish: ● Screw: Stainless steel (SUS304 equivalent) ● Base: Stainless steel (SUS304 forged) ● Surface treatment: Passivated
