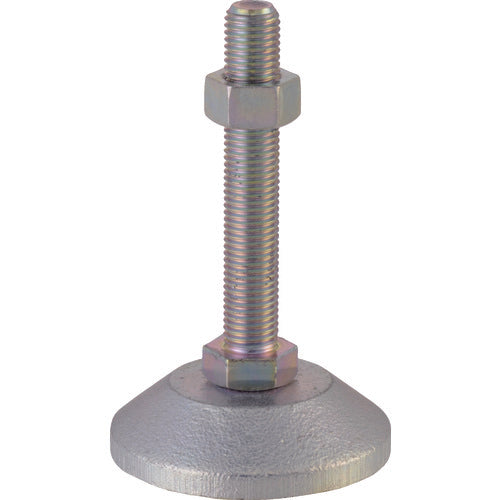

Daiwa Adtec Heavy Duty (Wide Tray Type) D-C3-24-180 1 pc

Catalog number: D-C3-24-180 Features: ● The tray is a forged product. ● The protruding part of the bolt passes through the hole in the tray and protrudes from the bottom of the tray. ● The protruding part is pressed in place so the bolt will not fall out. ● The bottom of the bolt is marked with a + sign for easy installation. ● The screw shaft rotates and tilts slightly. Applications: ● This is a heavy-duty adjuster with a large base (φ80, φ100) that has a wide adhesive surface to the floor. Specifications: ● Allowable load (kgf): 5000 ● Screw dimensions: M24 ● Screw length (mm): 180 ● Total height (mm): 217 ● Base diameter (mm): 80 ● Material: SS400 equivalent ● Trivalent chromate Material/Finish: ● Screw: Steel (SS400 equivalent) ● Tray SS400 forged ● Surface treatment: Trivalent chromate
