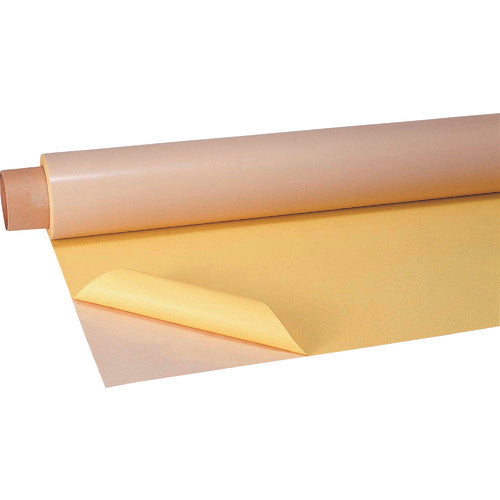

Chukoh Flow Wide width fluororesin glass cloth adhesive tape with separator AGF-500-4 0.15t x 1000w x 1m AGF-500-4-1M 1 roll

Catalog number: AGF-500-4-1M Features: *High dimensional stability type with fluororesin-impregnated glass cloth as the base material. *Wide type with separator (peeling film). *Excellent heat resistance, non-stickiness, high electrical insulation, chemical resistance, and slip resistance. Applications: *Heat-resistant release for heat seal crimping parts. *For lining chutes, hoppers, and other areas where slip is required. *For drying roll lining of nonwoven fabric, paper, etc. Specifications: ●Color: Beige ●Width (mm): 1000 ●Length (m): 1 ●Thickness (mm): 0.15 ●Tape cutting conditions: A cutter is required for cutting ●Adhesive strength (N/10mm): 4.8 ●Adhesive strength (N/25mm): 12 ●Tensile strength (N/10mm): 240 ●Tensile strength (N/25mm): 600 ●Operating temperature range (℃): -60 to 200 ●Breakdown voltage (kV): 5 ●Adhesive strength (N/mm): 4.8 ●Tensile strength (N/mm): 240 ●Glass cloth coating Material/Finish: ●Base material: Glass cloth + fluororesin (PTFE) ●Adhesive: Silicone-based
