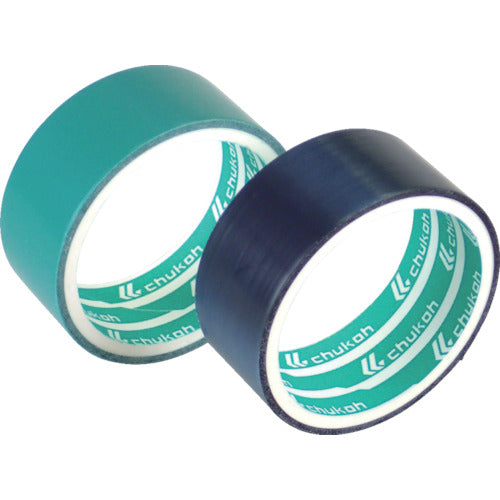

Chukoh Flow Ultra-thin Fluoroplastic Film Adhesive Tape ASF-116TFR Black 0.04t x 20w x 5m ASF116T FR B-04X20 1 roll

Catalog number: ASF116T FR B-04X20 Features: ● Ultra-thin fluororesin film adhesive tape. ● Excellent electrical insulation. ● Ideal for insulating bundling in places where space is limited. ● Colored adhesive. Applications: ● For bundling wires and cables. ● For insulating spacers and electrical insulating coatings. Specifications: Color: Black Width (mm): 20 Length (m): 5 Thickness (mm): 0.04 Tape cutting conditions: A cutter is required for cutting Adhesive strength (N/10mm): 1.2 Adhesive strength (N/25mm): 3 Tensile strength (N/10mm): 16 Base material: Fluorine resin (PTFE) Elongation (%): 110 Adhesive: Silicone-based Dielectric breakdown voltage (kV): 5 Adhesive strength: 1.2N/10mm Tensile strength: 16N/10mm Maximum operating temperature: 200℃ Breakdown voltage: 5kV Breakdown voltage: 5kV UL510 standard compliant Material/Finish: Base material: Fluorine resin (PTFE) Adhesive: Silicone-based
