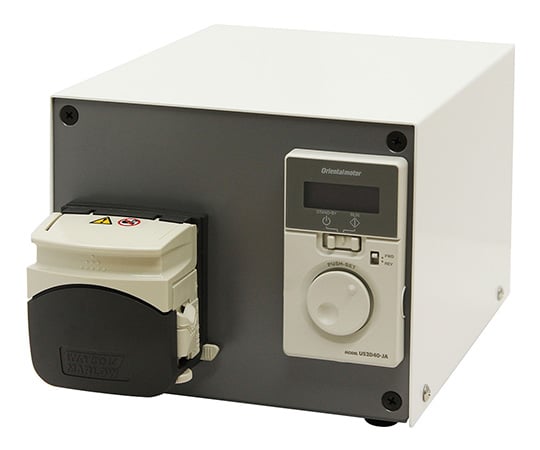

Tubing pump 313/US200 type (1ch) 1 unit

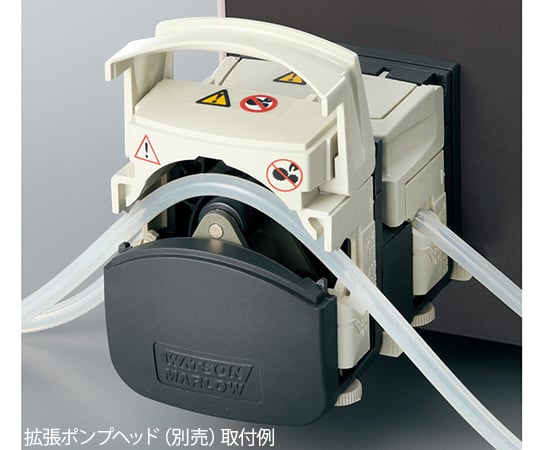

Flows a fixed amount of liquid or slurry. There are no glands, seals or valves, so there is no need to worry about valve or seal leakage. The automatic check valve eliminates the risk of backflow. The flip-top system (top and bottom opening and closing system) allows for smooth, one-touch tube replacement. Up to two heads can be attached (one head is included as standard). Specifications: 313/US200 type (1ch) Flow rate (mL/min) *: 50Hz/0.4~1099, 60Hz/0.4~1259 *Values ​​when pressure is released, head is 0, city water, and at room temperature. Maximum value: MAX rotation speed, using tube with inner diameter of Φ8.0 mm; Minimum value: MIN rotation speed, using tube with inner diameter of Φ0.5 mm Rotation speed: 50Hz/12-186rpm, 60Hz/12-213rpm Number of pump heads installed: 2 (standard pump head + extension pump head) *Please contact us if you wish to install 3 or more units. Discharge pressure (approximate): Silicon tube/Max. 0.15MPa, Marplene tube/Max. 0.2MPa *Varies depending on tube material and size Usable tubes: Silicone, Marprene, Bioprene, Neoprene, Tygon, etc. *Please use tubes with a wall thickness of 1.6 mm and an inner diameter of Φ0.5 to 8.0 mm. Usable liquid viscosity: 200cP Priming: Not required Forward/reverse operation switching: possible Power supply: AC100V 50/60Hz Power cord length: 2m (2P plug)
